Description

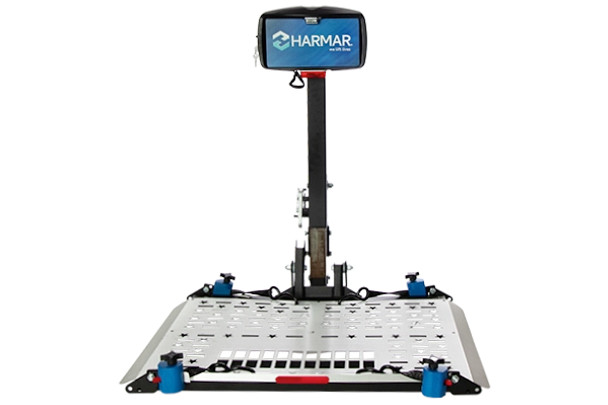

The Harmar AL500 is a power wheelchair specific vehicle lift. The AL500 has been one of our most popular power wheelchair lifts due to its functionality, quality features, and durability. The AL500 is also popular due its ability to be compatible with a very wide range of vehicles as well as styles and sizes of power wheelchairs. No modifications need to be made to your power wheelchair to use on the AL500. The AL500 will work with both Class II and Class III hitches. Four self-tensioning, quick release retracting straps with hooks securely hold your power wheelchair to this lift.
| AL500HD | ||
| Hitch Height: | 5" to 18" | 5" to 18" |
| Power Source: | Battery Hardwired |
Battery Hardwired |
| Works With Hitch Size: | Class II Hitch Class III Hitch |
Class II Hitch Class III Hitch |
| Professional Install Available: | Yes | Yes |
| Service Contract Available: | No | No |
| Operation: | Power | Power |
| Lifting Capacity: | 350 lbs. | 400 lbs. |
| Recommended For: | Full-Size Power Wheelchairs | Full-Size Power Wheelchairs |
| Platform Size - Length: | 39 in. | 39 in. |
| Platform Size - Width: | 27.5 in. | 27.5 in. |
| Installed Product Weight: | 75 lbs. | 77 lbs. |
| Type of Lift: | Outside Lift | Outside Lift |
| Warranty: | 3 Year Limited Warranty | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes | Yes |
Warranty Information
Harmar Mobility warrants its vehicle lift and access ramp products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries and paint, for a period of three (3) years, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar Mobility products are installed or defects in Harmar Mobility products caused by defects in any part of the vehicle upon which the product is installed.
